About this item

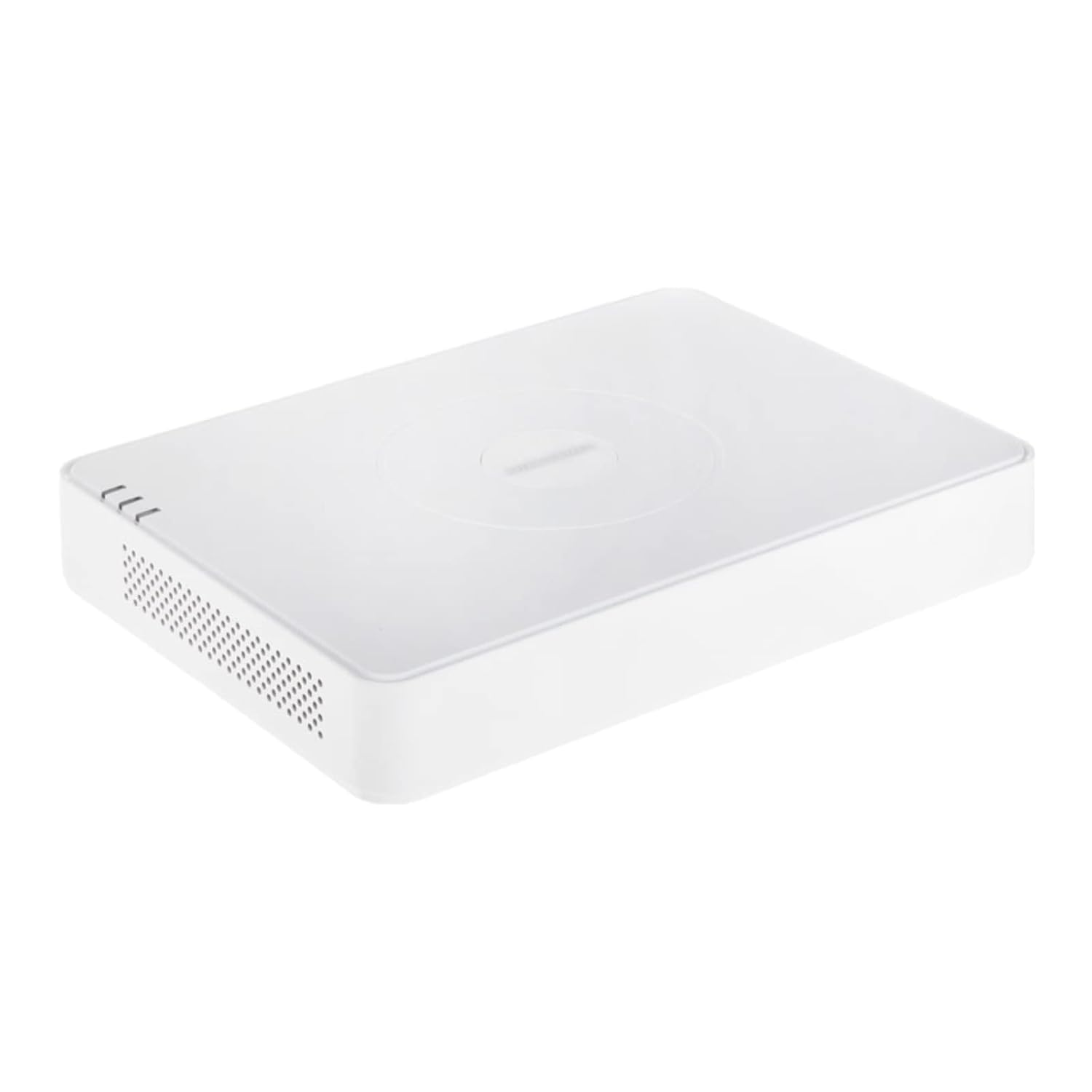

HIKVISION 16 Channel H.265 AcuSense DVR [iDS-7116HQHI-M1/S]


Human/Vehicle Analysis : Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused

Line Crossing : 4-ch

Facial Detection and Capture : Face picture detection

Video Compression : H.265 Pro+/H.265 Pro

Encoding Resolution : When 1080p Lite mode is not enabled For 4 MP stream access

Video Bitrate : 32 Kbps to 6 Mbps

Dual-stream : Support

Stream Type : Video, Video & Audio

Audio Bitrate : 64 Kbps

IP Video Input : 2-ch (up to 18-ch)

Analog Video Input : 16-ch

Incoming Bandwidth : 96 Mbps

HDTVI Input : 3K@20 fps, 5 MP@20 fps, 4 MP@30 fps

AHD Input : 5 MP@20 fps,4 MP@30 fps, 4 MP@25 fps

HDCVI Input : 5 MP@20 fps,4 MP@30 fps, 4 MP@25 fps

CVBS Input : PAL/NTSC

HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz

Audio Input : 16-ch via coaxial cable

Synchronous playback : 16-ch

Remote Connection : 128

Total Bandwidth : 128 Mbps

Network Protocol : TCP/IP, PPPoE

Network Interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface : SATA 1 SATA interface

Capacity : Up to 10 TB capacity for each disk

USB Interface : Real panel: 2 × USB 2.0

Power Supply : 12 VDC, 1.9 A

Consumption : ≤ 15 W

Dimension : (W × D × H) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)

Weight : ≤ 1 kg (2.2 lb)
